Energy-saving Direct-Driving Muti-Needle Sewing Machine
Release time:2016-11-28 15:34:38 | Browsing times:

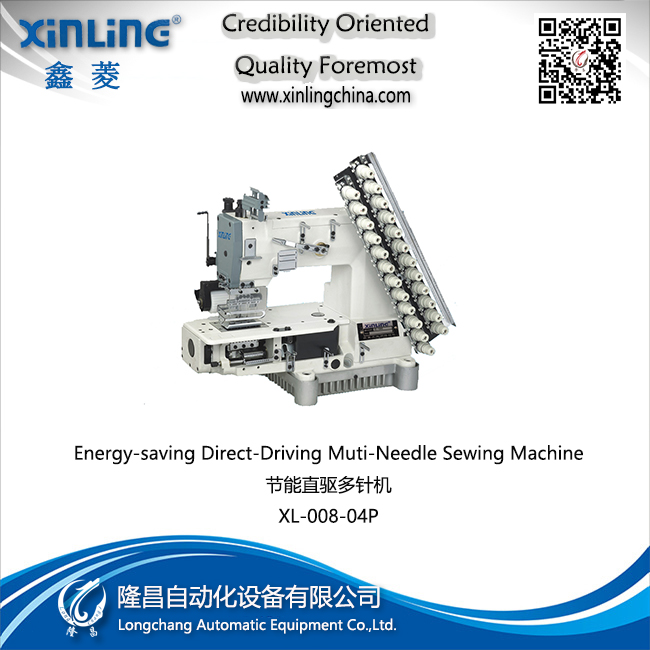

Product Name: Energy-saving Direct-Driving Muti-Needle Sewing Machine

Brand: XinLing

Driving Form: Electricity

Shape and Size(length*width*height) : 615*400*605(mm)

Whole Weight: 52(kg)

Technology Parameters

        1 . number of needles : 4

        2 . number of threads : 8

        3 . rotation rate:3500 rotations per minute

        4 . maximum needle gage : 1/4(mm)

        5 . presser foot lift : 6(mm)

        6 . width of stitch  :1.4-4.2(mm)



Usage:1 . General sewing

             2 . The machine is suitable for superior clothing sewing .

             3 . The machine is suitable for female skirt’s drape , also for waist elastic  belt drape bordure of dress , such as blouse , swimsuit , clothing for women , pillowcase , children's sweater  and so on.

Functions:

              1 . Complete automatic oil supply system and oil filter device .

              2 . Crochet adopts longitudinal direction motion mechanism .

              3 . The machine is equipped with back pulling and guide rolling device .

              4 . The key components get light-weight and special-hardening treatment , improving the machine’s low vibration and abrasion performance
