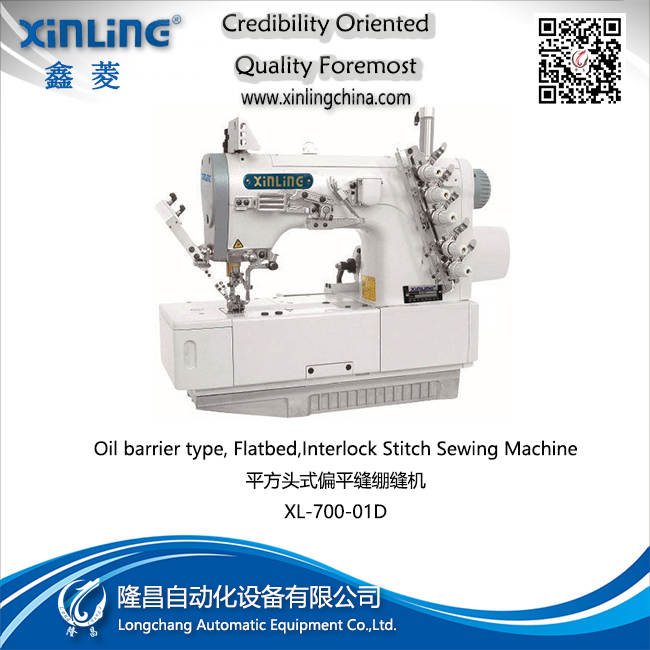

Oil barrier type,Flatbed,Interlock Stitch Sewing Machine
Release time:2016-11-28 15:34:38 | Browsing times:

Product Name: Platform-Type Direct-Driving High-Speed Flat Seaming Machine

Brand: XinLing

Driving Form: Electricity

Shape and Size(length*width*height) : 630*390*630(mm)

Whole Weight: 45(kg)

Technology Parameters

        1 . number of needles : 3

        2 . number of threads : 5

        3 . rotation rate:6000 rotations per minute

        4 . maximum needle gage : 1.5-4.4(mm)

        5 . presser foot lift : 5(mm)

        6 . width of stitch  :5.6-6.4(mm)


Usage:The machine is suitable for fabric underclothes , training wear ,T-shirts and so on . The machine is equipped with forced oil drainage differential adjustment and HR devices , making materials clean, stitch beautiful .


         1 . The function of thread cutting automatically is worker-saving and thread-saving .The fresh worker can quickly acquire sufficient proficiency . The thread-cutting worker can be spared and  efficiency gets improvement more than 40 percent . After cutting thread , the length of thread can be adjusted according to requirement to save thread amount .

         2 . The machine adopts computer direct-driving motor with precise positioning .

         3 . The excellent feeding mechanism can prevent jitter in high speed in the state of low tension , greatly improving productivity .

         4 . Beautiful and generous , easy to operate .

         5 . The greatest power balance design has features of low vibration and low noise .

         6 . The machine is suitable for making all kind of decorations , which can sew up decorations on both sides by a large area of cloth .

         7 . The machine is suitable for thin , moderate and thick clothing .

         8 . The curved needle mechanism adopts the inclined and curved shape device with excellent endurance performance .
