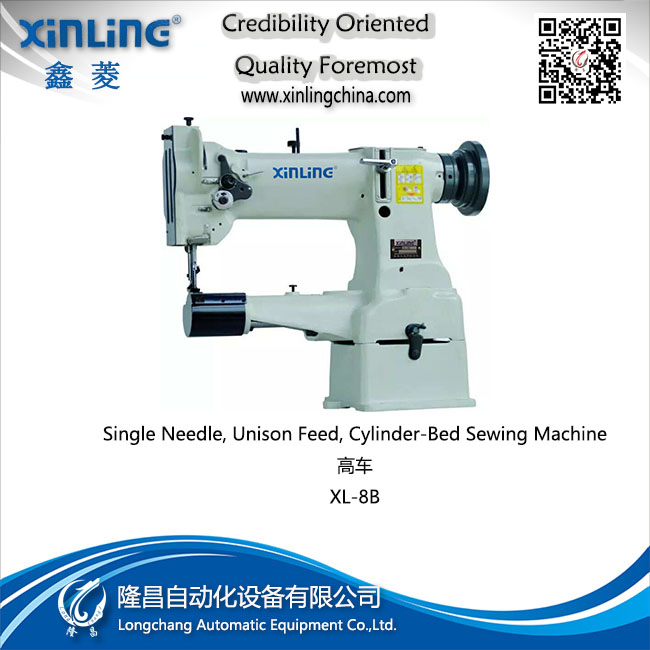

Product Name: Single NeedleCylinder bed with  Unison feed Lockstitch Sewing Machine

Brand: XinLing

Driving Form: Electricity

Shape and Size(length*width*height) : 800*500*1100(mm)

Whole Weight: 50(kg)

Technology Parameters

        1 . maximum sewing speed：2200 needles per minute

        2 . needle bar stroke : 33.2(mm)

        3 . stitch length : 0-8(mm)

        4 . presser foot lift : 15(mm)

        5 . machine needle :DP*17

 Usage:Packaging, luggage, seat cushions, tents, sofas, purses and other heavy-weight products, especially for sewing simple articles and curved articles .

Function:

        1 . The machine adopts slide bar take-up, vertical rotating shuttle hooking line, to constitute double-needle lock stitch.

        2 . Upper and lower shaft with synchronous toothed belt transmission; lever-type gauge adjustment mechanism .

        3 . It is easy to handle materials difficult to transmit and multi-layer heavy-weight leather by integrated feed, needle feed and alternate presser foot feed, as well as high presser foot stroke, high foot lift gap and large stitch length with simple sewing platform .

        4 . Installing the clutch safety device to prevent damage caused by overloading the machine
